- New

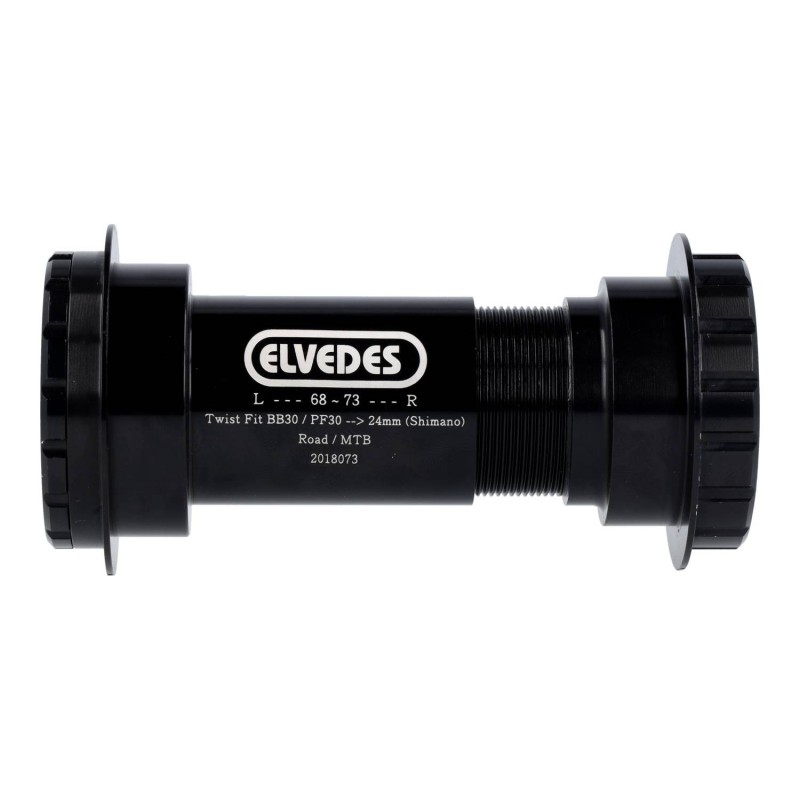

ELVEDES Bottom Bracket Threaded BB30/PF30 - 24mm (Shimano)
CA $184.00
Brand: Elvedes
Model: 2018073
Spacers included, allowing the bottom bracket to be adapted to 42 or 46 mm depending on the frame standard.
The threaded interlocking cups stay perfectly in line, allowing the spindle to run freely without squeaking.
Elvedes bottom brackets are made of aluminum: once installed, only the bearings can be replaced, which avoids having to change the entire bottom bracket.
Installation tool no. 2017087 required.
In stock: 2 Items
Product Description
Standard bottom bracket shell: BB30 - PF30
Internal shell diameter: 42 - 46 mm
Shell width: 68 - 73 mm
Axle diameter: 24 mm
Installation tool: Elvedes 2018086
Included in the kit:
-
2× PF30 46 mm adapters (1× drive side and 1× non-drive side)
-
2× BB30 42 mm adapters (1× drive side and 1× non-drive side)
-
2× 0.5 mm plastic spacers
-
2× 1 mm plastic spacers
-
2× 2.5 mm aluminum spacers
-
Assembly instructions
Product Details
ELV BDP 2018073
2 Items
Data sheet
- Bottom bracket standard
- BB30
PF30 - Outside diameter (mm)
- 42
46 - Width (mm)
- 68
73 - Axle diameter (mm)
- 24
- Bottom bracket style
- Thread Together
Brand: Elvedes
Model: 2018073
Spacers included, allowing the bottom bracket to be adapted to 42 or 46 mm depending on the frame standard.
The threaded interlocking cups stay perfectly in line, allowing the spindle to run freely without squeaking.
Elvedes bottom brackets are made of aluminum: once installed, only the bearings can be replaced, which avoids having to change the entire bottom bracket.
Installation tool no. 2017087 required.
