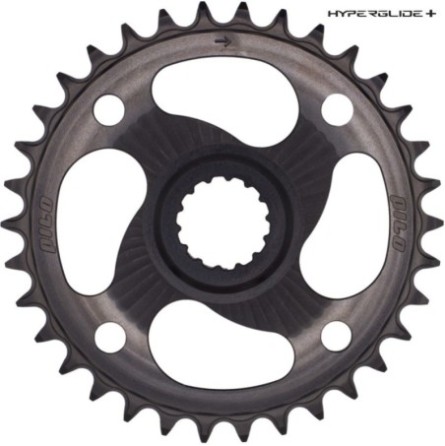

Direct Mount Chainring HG12 - Bosch Gen4 & Gen5
$ US 93.05
Brand: Pilo
Material: aluminium 7075 T7351
Manufacturing: CNC machined, anodized finish.
The direct-mount profile differs from the original Gen4 model. Every other notch has been machined, so it looks like the Gen3 but is fully compatible with Gen4 and Gen5—no worries.
In stock: 1 Item
Product Description
Narrow / Wide tooth profile for the ultimate chain retention and mud shedding ability
E-Bike ready
Shape:
- Round
Motors:
- Bosch Gen 4, Gen 5
Chains:
- All 9, 10 and 11-speed
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- 12-speed Shimano, SRAM and KMC. (Doesn't fit T-Type Chains)
- 12-speed Hyperglide+ chains
Chainline:
- 55mm
Weight:
- 34T: 133g
The crank arm must be aligned with the little arrow on the chainring.
Product Details
PLO DIV C56
1 Item
Data sheet
- Crank standard
- Bosch Gen4
- Type
- Round
- Chain compatibility
- Hyperglide+ 12s
Standard 10, 11 and 12s
Specific References
- EAN13
- 7290107118279
